DIPD Document

4xpl0r3r/DIPD: Debug with IDA and Pwntools in Docker (DIPD) (github.com)

This article is also available in 简体中文.

About

With this, you can debug a program in docker and make use of both IDA and Pwntools

SAFT QUICK POWERFUL(IDA)

Get Started

git clone https://github.com/4xpl0r3r/DIPD.git

1. Install docker, docker-compose, and IDA (You can deploy them in separated hosts, but the network between them must be OK)
2. move the binary to debug/ directory and rename the binary to todebug
3. run the command docker-compose up in the root directory of this project

Access to the STDIO of binary

nc docker.ip 23458

IDA Pro Debugger Arguments (version 7.6)

• Type: Remote Linux Debugger (Attach)
• Hostname: docker.ip (the IP of your host which running docker)
• Port: 23946
• No password need

Caution

• You have to run the binary by netcat or pwntools before attaching the process, or you can’t see the desired process in your IDA
• You have to run the docker in a 64bit arch Linux to support both 32bit(i386) and 64bit(amd64) debug

Demo

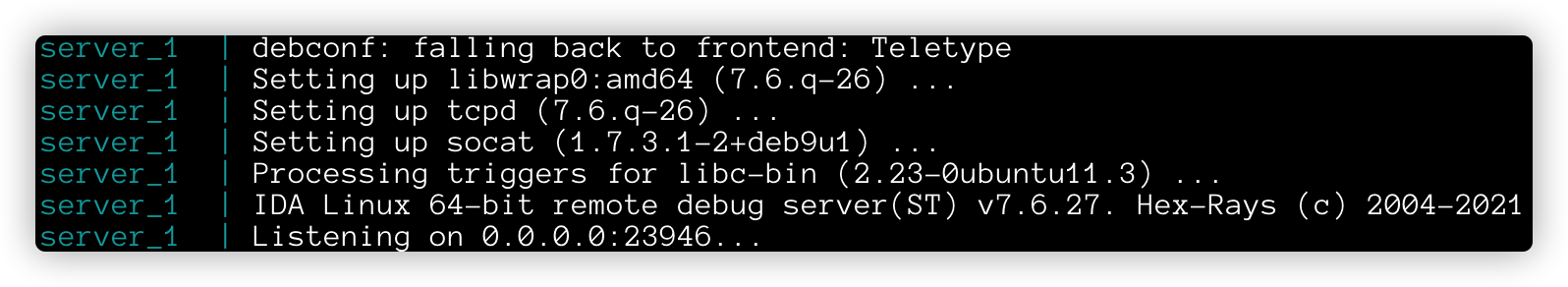

Start the DIPD

docker-compose up

Run and connect to the STDIO of your binary

nc docker.ip 23458

Now, your binary should have been running

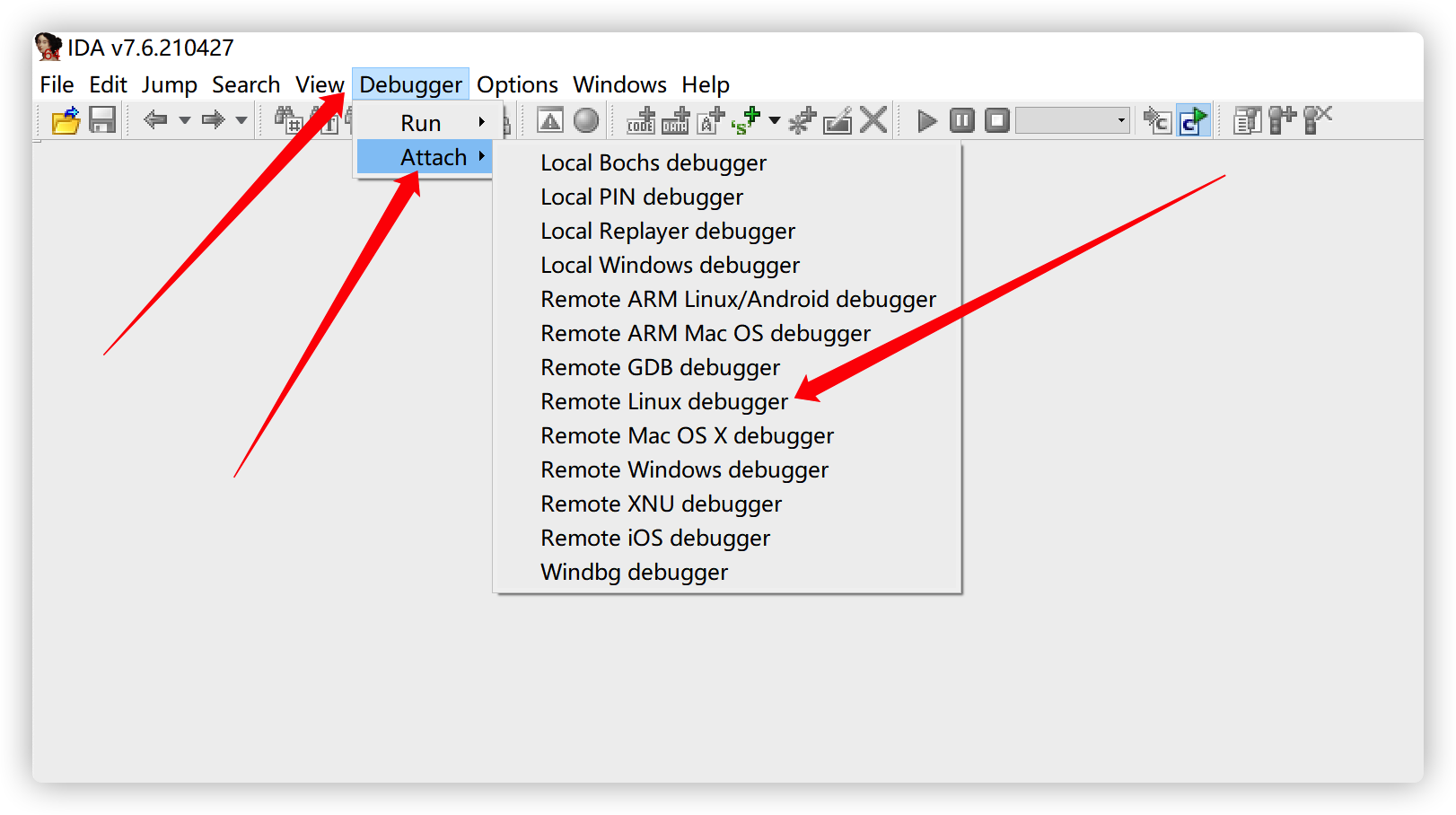

Let’s use our IDA and start the IDA Debugger

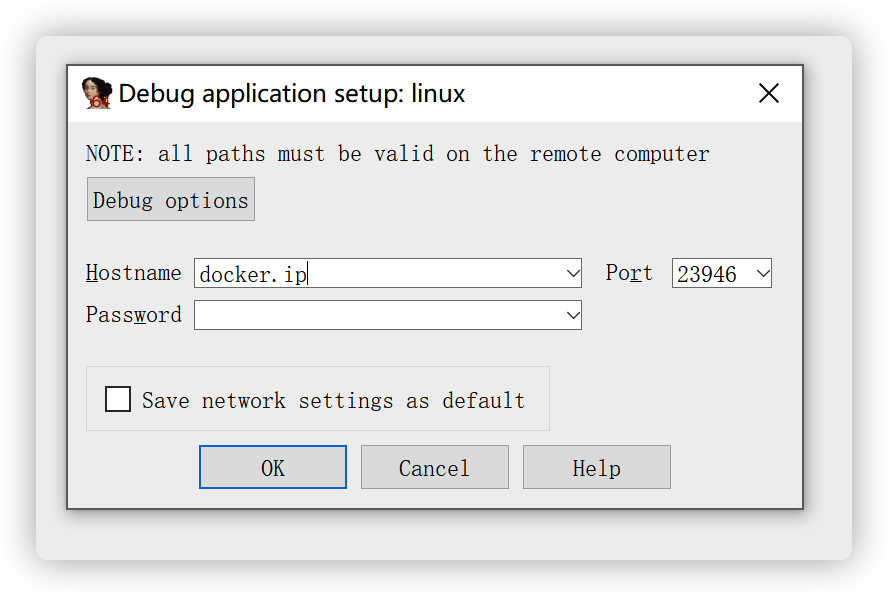

Input Information and click “OK”

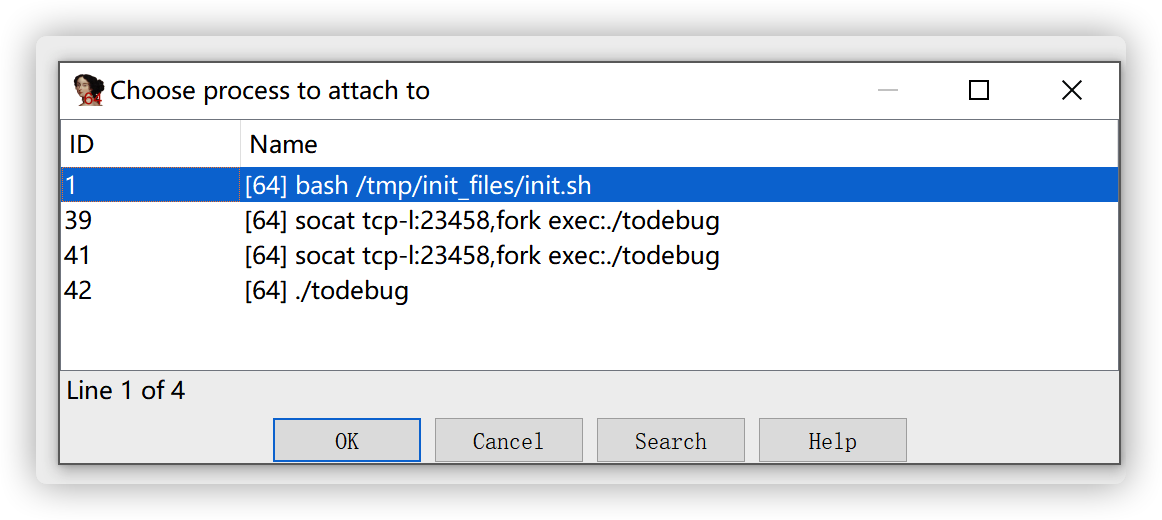

Now you can see the processes in your docker, choose ./todebug and click “OK”

Now, you should have got into IDA debug view without any error and exception.

file - docker-compose.yml


You can choose the base image as you like, here are some useful options

i386/ubuntu:16.04
i386/ubuntu:18.04
amd64/ubuntu:16.04
amd64/ubuntu:18.04

You have to run your docker in 64bit Arch to support both i386 and amd64, or the only option is i386

Other arguments

Just have a look at the annotation over there

directory - files

directory - debs

the apt packages for socat, used for fast install and offline support

files - linux_server[64]

IDA Debug Server v7.6

If you don’t want to use IDA v7.6, just replace them with yours

file - init.sh

This file is used for initializing the debug environment, you can modify it to make any adjustment

directory - debug

Just place the binary you want to debug here

If you have an application isn’t having only 1 ELF file, just copy them all to this directory

If you don’t want to change the name of your elf file, you could change the argument debug_name in docker-compose.yml
